Chain on Edge Chemosil Coating Machine - OKM-V

The forefront of technology for the application of Rubber to Metal Bonding Agents

Spray application of Chemosil in the production of vibration-damping wedges and other rubber products is a crucial step. Our advanced system ensures a dual-layer application—primer and seconder—onto parts loaded on the machine. Equipped with vertically moving robots and precision spray guns, the OKM-V guarantees efficient, even coating and rapid drying, thanks to the preheating process that prepares the materials for immediate adhesion and efficient subsequent layering.

Product Video

Watch this video for a quick look at the product’s main features, technical options and usage details.

Features	Options
Optimized operation enables efficiency with minimal staffing. Compact design significantly minimizes space requirements. Automated spraying enhances productivity and reduces labor costs. Spindle rotation guarantees even coating application.	Positive pressured spray booth Interior coating function

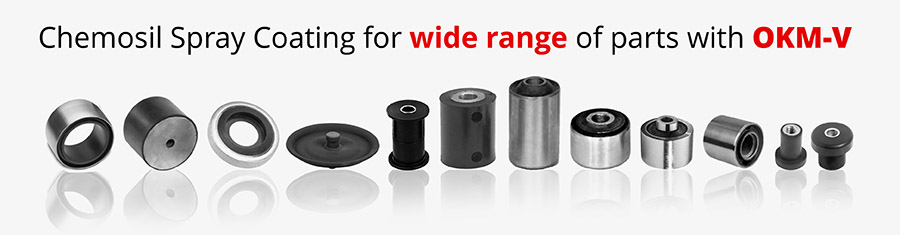

chemosil spray coating application part types

Additional Details
Preheating Infrared preheating prepares metal surfaces for primer application, enhancing overall adhesion and improving coating properties for layering.	Control Panel The touch panel simplifies control, enabling precise adjustments, temperature and ventilation monitoring, and secure data logging.	Interior Coating Enhance your capability with an optional interior coating gun, perfect for parts requiring internal surface coating.

Spindle / Chain on Edge Spray Application

Our systems are perfect for a wide range of circular parts. In OKM-V models, all surfaces of the parts will be circumferentially sprayed. Parts can be vertically loaded on top of each other.

Working Principle:

The materials are placed on the machine by attaching to the apparatus on the hangers in the loading area. After the material passes through the preheating oven through step by step conveyor it reaches to the adhesive blooth. The gray color application will be applied to the turning material by using paint guns.

By blowing hot air on the materials, the drying of the gray adhesive will be accelerated and they will move to the black color application station. After black color application, materials move to drying oven and be ensured of drying of adhesive. Then the materials are unloaded in the unloading zone. The waste gas formed during the application is exhausted from the waste gas chimney by the fan on the booths.

The whole system controlled by PLC. Speed adjustment on every element on the machine is possible. For example, the speed of the material and conveyor can be adjusted. When a malfunction occurs in the system, it stops, gives fault signals and displays the possible cause of failure on the operator's panel display.
